SPECIFICATIONS

Brand Name: AEVYVKV
Certification: CE
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
Function 1: Adjustable 1000W Switching Power Supply
Function 10: 220V Power Supply
Function 11: 300V Power Supply
Function 12: 400V Power Supply

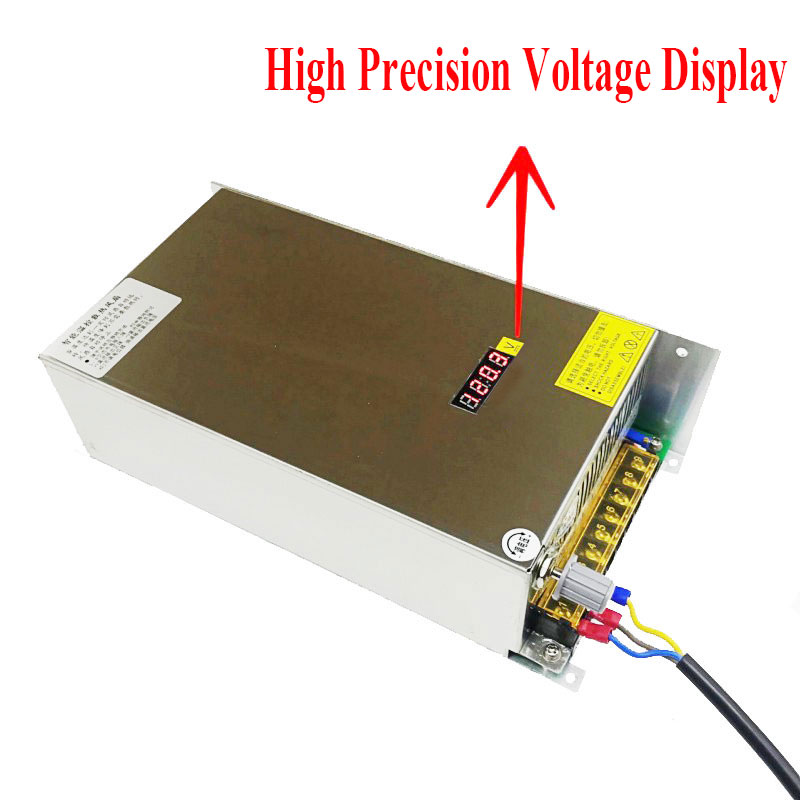

Function 13: Digital Display
Function 14: Voltage Regulated
Function 2: Power Supply DC 0- 12 Volt
Function 3: 12V Power Supply
Function 4: 24V Power Supply
Function 5: 36V Power Supply
Function 6: 48V Power Supply
Function 7: 60V Power Supply
Function 8: 70V Power Supply
Function 9: 110V Power Supply
High-concerned chemical: None
Model Number: Adjustable 1000W Switching Power Supply
Origin: Mainland China
Output Current: 0-50A
Output Frequency: 50/60Hz
Output Power: >500W,＞500
Output Type: SINGLE
Rated Capacity: ＝1000VA
Type: Power Supply
Use: Other
is_customized: Yes

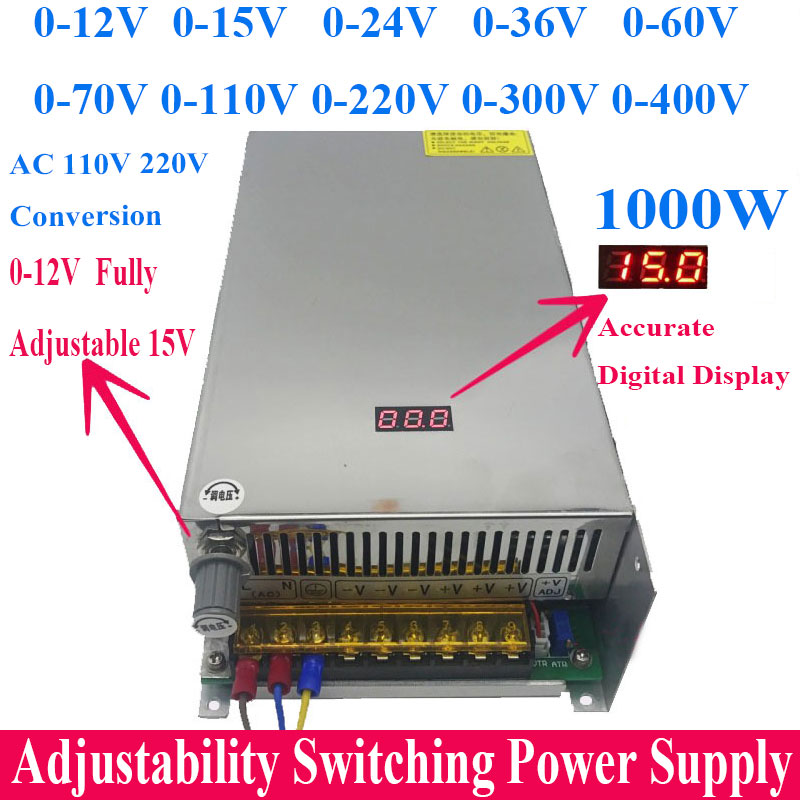

Adjustable 1000W Switching Power Supply DC 0- 12 Volt 24V 36V 48V 60V 70V 110V 220V 300V 400V Digital Display Voltage Regulated
A New Type of Current Limiting and Adjustable Voltage Regulating Switching Power Supply

The adjustable regulated power supply has stable and reliable performance,

DC output voltage from

(0-12V) (0-24V) (0-36V) (0-48V) (0-60V) (0-70V) (0-110V) (0-220V)(0-300V)(0-400V)

Continuously adjustable, high adjustment accuracy, high-precision multi turn Potentiometer, overload current limiting function, current limiting output

(0-85A) (0-42A) (0-29A) (0-21A) (0-16.5A) (0-14.2A) (0-9A) (0-4.5A) (0-3.3A) (0-2.5A) Continuously adjustable

0-5V signal control voltage and current, power 0-1000W

1. Technical performance indicators

1. Output voltage range: 0-12V continuously adjustable, output current: 0-70A (adjustable to 15V) ''Digital display digit: 3 digits''

Output voltage range: 0-24V continuously adjustable, output current: 0-40A (adjustable to 29V) ''Digital display digit: 3 digits''

Output voltage range: 0-36V, continuously adjustable, output current: 0-28A (adjustable to 38V) ''Digital display digit: 3 digits''

Output voltage range: 0-48V continuously adjustable, output current: 0-20A (adjustable to 50V) ''Digital display digit: 3 digits''

Output voltage range: 0-60V continuously adjustable, output current: 0-17A (adjustable to 62V) ''Digital display digit: 3 digits''

Output voltage range: 0-70V continuously adjustable, output current: 0-14.2A (adjustable to 72V) ''Digital display digit: 3 digits''

Output voltage range: 0-110V continuously adjustable, output current: 0-9A (adjustable to 112V) ''Digital display digit: 4 digits''

Output voltage range: 0-220V continuously adjustable, output current: 0-4.5A (adjustable to 225V) ''Digital display digit: 4 digits''

Output voltage range: 0-300V, continuously adjustable, output current: 0-3.3A (adjustable to 305V) ''Digital display digit: 4 digits''

Output voltage range: 0-400V, continuously adjustable, output current: 0-2.5A (adjustable to 405V) ''Digital display digit: 4 digits''

2. Ripple voltage; Not greater than 100mV

3. Equivalent internal resistance of voltage stabilization: not greater than 0.05 Ω

4. Voltage regulation rate:

5. Equipped with short-circuit, overheat, current limiting protection, and automatic recovery functions

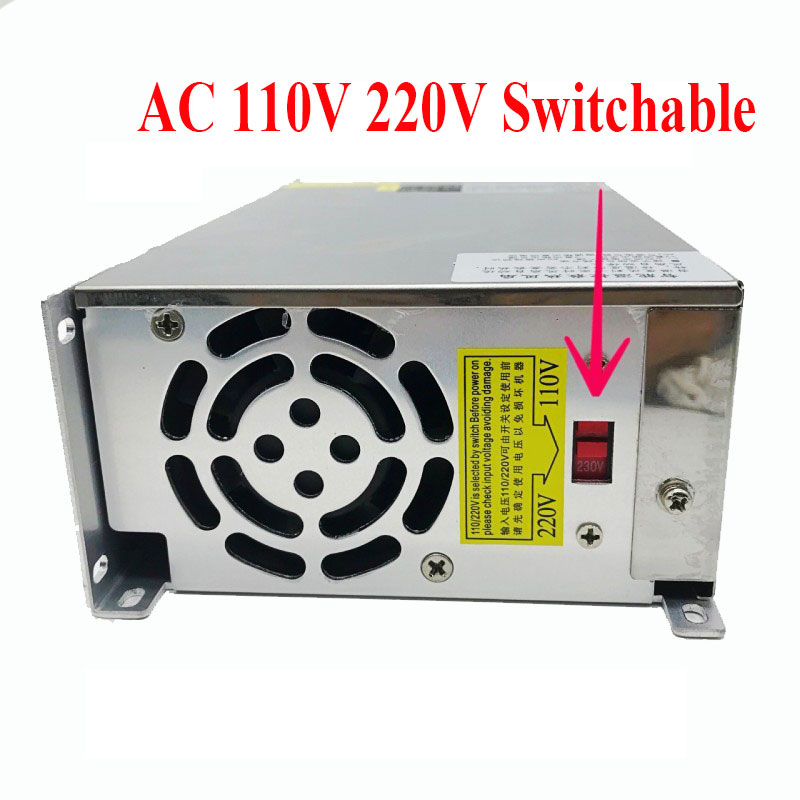

6. Input voltage - AC110V/220V ± 15%

Purpose: Mainly used for various battery charging, DC equipment, DC motor stepless speed regulation
LED endless dimming, chemical electrolysis electroplating speed regulation, scientific research testing, student experiments, and so on, with a wide range of applications.
Special attention: When using inductive loads such as motors and fans, please pay attention to the starting current parameters of the motor,
This parameter should not be higher than the current used by the power supply, otherwise it may cause damage to the power supply. A higher current power supply should be selected, or the motor should be equipped with a soft start protection circuit to absorb the impact current
