SPECIFICATIONS

Application: Desktop
Brand Name: ASROCK
Chip Process: 7NM
Chipset Manufacturer: AMD
Cooler Type: Triple Fans
High-concerned chemical: None
Interface Type: PCI Express 4.0x16
Memory Clock(Mhz): 16000
Memory Interface: 256 BIT
Origin: Mainland China
Output  Interface Type: HDMI 1.4x1,DisplayPort x3
Overclocked: Yes
Power Connector: 8pin + 8pin + 8pin
Product Category: Desktop Graphics Cards
Product Features: RGB
RGB: Yes
Usage Scenario: Enthusiast & Overclocking,Gaming,Audio & Video
Video Memory Capacity: 16 GB
Video Memory Type: GDDR6

Clock: GPU / Memory
Boost Clock: Up to 2310 MHz / 16 Gbps
Game Clock: Up to 2065 MHz / 16 Gbps
Base Clock: 1875 MHz / 16 Gbps
Key Specifications
7nm AMD Radeon™ RX 6800 XT Graphics
16GB 256-bit GDDR6
AMD RDNA™ 2 Architecture
Hardware Raytracing
PCI® Express 4.0 Support
3 x 8-pin Power Connectors
3 x DisplayPort™ 1.4 with DSC / 1 x HDMI™ 2.1 VRR
Key Features
Polychrome SYNC
Phantom Gaming 3X Cooling System
Striped Axial Fan
Reinforced Metal Frame
Stylish Metal Backplate
0dB Silent Cooling
Super Alloy Graphics Card

Graphics Engine
- AMD Radeon™ RX 6800 XT Graphics
Bus Standard
- PCI® Express 4.0 x16
DirectX
- 12 Ultimate
OpenGL
- 4.6
Memory
- GDDR6 16GB
Engine Clock
- Boost Clock: Up to 2310 MHz
- Game Clock: Up to 2065 MHz
- Base Clock: 1875 MHz
Stream Processors
- 4608
Compute Units
- 72
Memory Clock
- 16 Gbps
Memory Interface
- 256-bit
Resolution
- Digital Max Resolution: 7680 x 4320

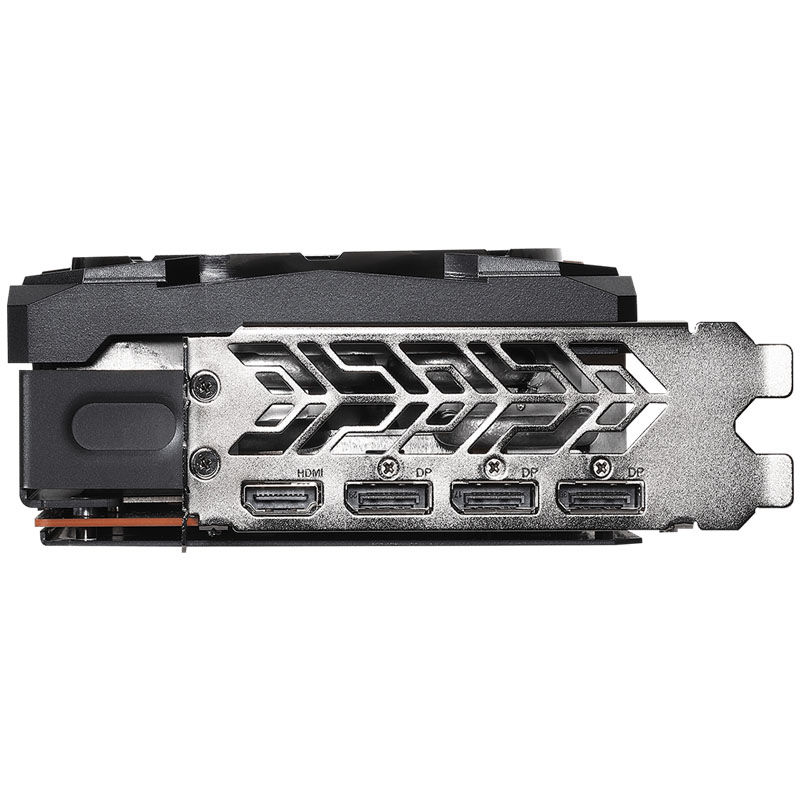

Interface
- 1 x HDMI™ 2.1 VRR
- 3 x DisplayPort™ 1.4 with DSC
HDCP
- Yes
Multi-view
- 4
Recommended PSU
- 800W
Power Connector
- 3 x 8-pin
Accessories
- 1 x Quick Installation Guide
Dimensions
- 330 x 140 x 56 mm, 2.8-slot
Net Weight
- 1784 g
